Orukọ Brand: PNTEK
Lo:Irigeson Ogbin/Ile-oko/Ile odo/Itumọ ẹrọ
Awọ: Ọpọlọpọ awọn awọ wa fun yiyan
Ohun elo: UPVC
Iwọn otutu ti Media: Iwọn otutu giga, iwọn otutu kekere, Iwọn otutu, Iwọn otutu deede
Igbesi aye ọja:> 500,000 Awọn akoko Ṣii & Titosi

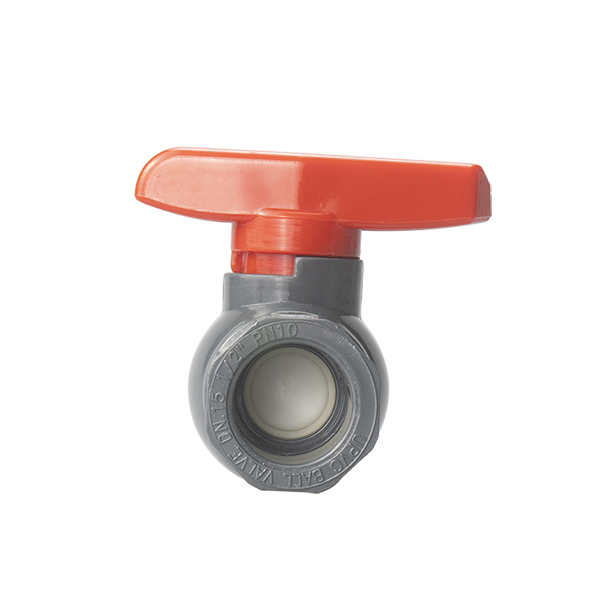

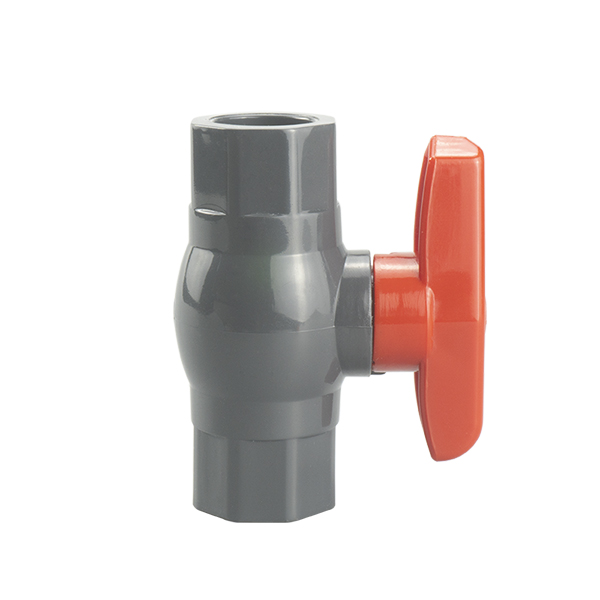

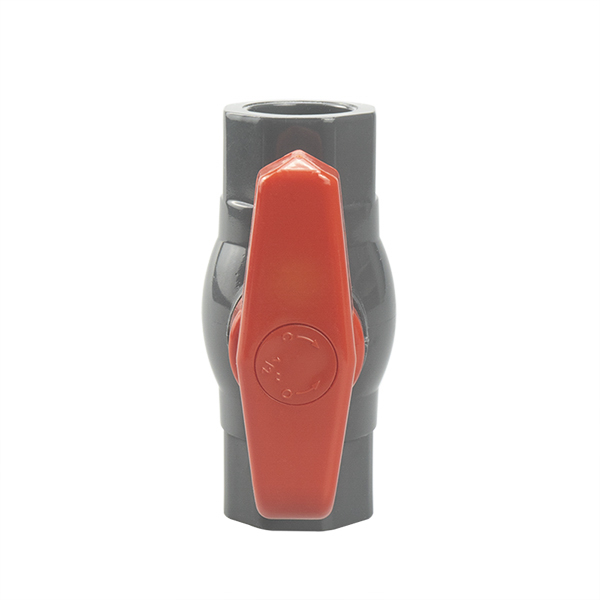

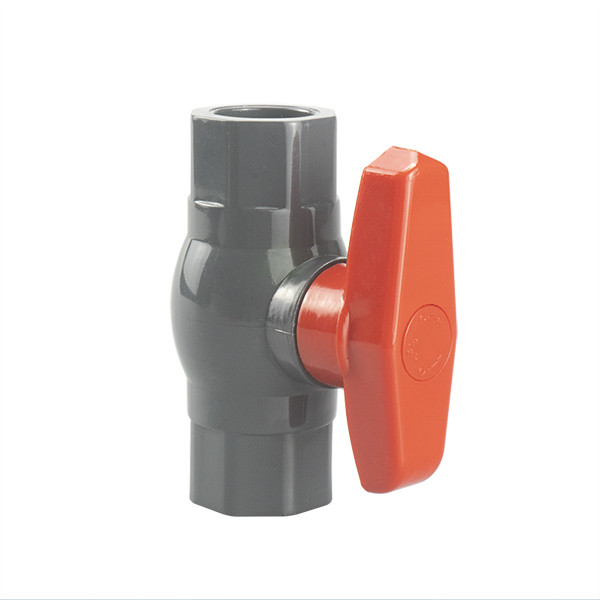

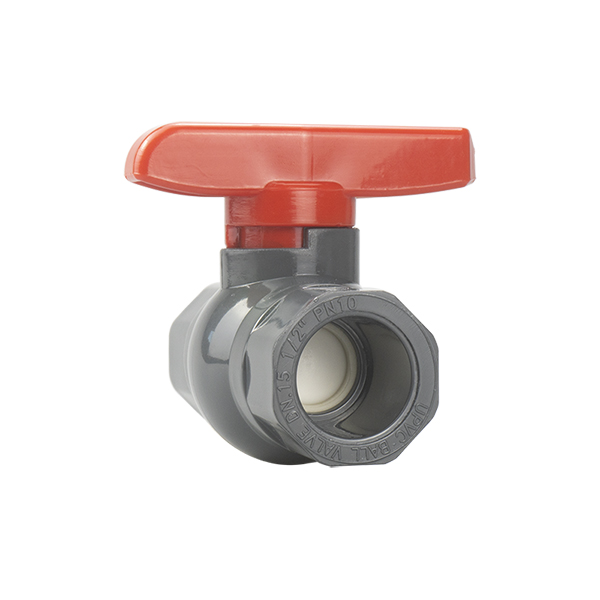

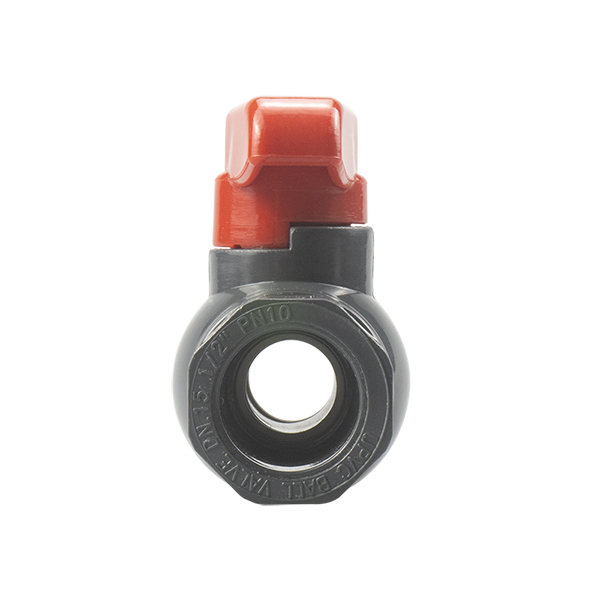

ọja Apejuwe
Bọọlu bọọlu ti ile-iṣẹ wa le ṣe idiwọ ipata daradara, nitorinaa igbesi aye iṣẹ rẹ le ni ilọsiwaju ni imunadoko, ati pe ọja funrararẹ ni irọrun pupọ ati irọrun, pẹlu agbara giga ati jijo ti o kere si, nitorinaa o ni iyìn pupọ nipasẹ awọn alabara. Wọn jẹ lilo pupọ ni ile-iṣẹ ati ile ara ilu, pẹlu inu ati ita ti ilẹkun,
awọn iṣẹ akanṣe paipu omi, awọn ipo kemikali ipata ati tun le ṣee lo fun eto irigeson ogbin.
Yato si, theyr'e tun dara fun fentilesonu paipu andd idominugere opo gigun ti epo, etc.A ni o yatọ si titobi ti awọn ọja ani fun nikan ohun kan, fun yatọ si ohun elo ipo. Idanwo 100% jo lati rii daju pe awọn ọja ti o gba dara. Ṣiṣayẹwo awọn ọja deede yoo wa lakoko iṣelọpọ lati rii daju pe awọn ọja ti de boṣewa kariaye.
Gẹgẹbi ipin ti awọn paipu ṣiṣu ni ipese omi gbona ati tutu ati awọn ohun elo imọ-ẹrọ paipu ile-iṣẹ tẹsiwaju lati pọ si, iṣakoso didara ti awọn falifu ṣiṣu ni awọn ọna paipu ṣiṣu ti n di pataki pupọ si.
Awọn anfani ọja
1, Iwọn ina ati agbara giga
2. Ko si ariwo gbigbọn nigba lilo
3. Rọrun lati ṣii ati pipade
4. Iwapọ rogodo àtọwọdá jẹ rọrun lati fi sori ẹrọ
5. Oṣuwọn jijo ti o kere julọ, 100% idanwo ṣaaju iṣakojọpọ
6. Agbara ito jẹ kekere
7. Mu awọn ohun elo ti rogodo àtọwọdá: ABS, ara ohun elo: PVC
8. Alkali ati acid resistance
9. Awọ rirọ ati apẹrẹ ti o dara julọ
10. Ayika ore, ti kii-majele ti
11. Widly lo ninu igbesi aye ojoojumọ: Ikọle, irigeson ogbin, ile-iṣẹ, ọgba, adagun odo ...
12. Awọn wọnyi ni rogodo àtọwọdá ti wa ni ti a nṣe ni titobi orisirisi lati 20mm to110mm (lati 1/2 '' to 4 '')
13. Awọ Wa: Alawọ ewe, grẹy, funfun, brown, blue
14. Iwe-ẹri: ISO 9001, idanwo china
Àlàyé ati ti ara map
Ohun elo paati
sipesifikesonu ti ohun elo
| RARA. | Apakan | Ohun elo | QTY |
| 1 | ARA | UPVC, CPVC | 1 |
| 2 | STEM Eyin-Oruka | EPDM,FPM(NBR) | 1 |
| 3 | STEM | UPVC, CPVC | 1 |
| 4 | BOOLU | UPVC, CPVC | 1 |
| 5 | SEAT SEAT | TPE, TPVC, TPO | 2 |
| 6 | CAP | PVC, ABS | 1 |
| 7 | MU | PVC, ABS | 1 |
| 8 | SCREW | SS304, IRIN | 1 |
Awoṣe iwọn paramita lafiwe tabili
| DIMENSION | Ẹyọ | |||||||||||
| ÀṢẸ́ | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||
| ITOJU | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | Inṣi | ||
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | mm | |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | mm | ||
| JIS | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 | mm | ||
| d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | mm | ||
| ANSI | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | mm | ||
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | mm | ||
| DIN | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 | mm | ||
| d2 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 | mm | ||
| d | 15 | 19 | 24 | 30 | 34 | 45 | 55 | 70 | 85 | mm | ||
| H | 37 | 55 | 66 | 73 | 81 | 91 | 99 | 121 | 134 | mm | ||
| A | 68 | 80 | 94 | 100 | 110 | 136 | 170 | 210 | 236 | mm | ||
| L | 77 | 91 | 103 | 111 | 123 | 146 | 178 | 210 | 255 | mm | ||
| D | 30 | 35.5 | 43 | 52 | 62 | 75 | 91 | 106 | 130 | mm | ||
