Didara Giga OEM 140MM 160MM 168MM 200MM Irin Alagbara UPVC Fáìlì Bọ́ọ̀lù Nlá Fún Iṣẹ́ Àgbékalẹ̀ DN200

Didara Giga OEM140MM 160MM 168MM 200MM Irin Alagbara UPVC Iwọn Bọ́ọ̀lù Ńlá Fún Iṣẹ́ Àgbékalẹ̀ DN200

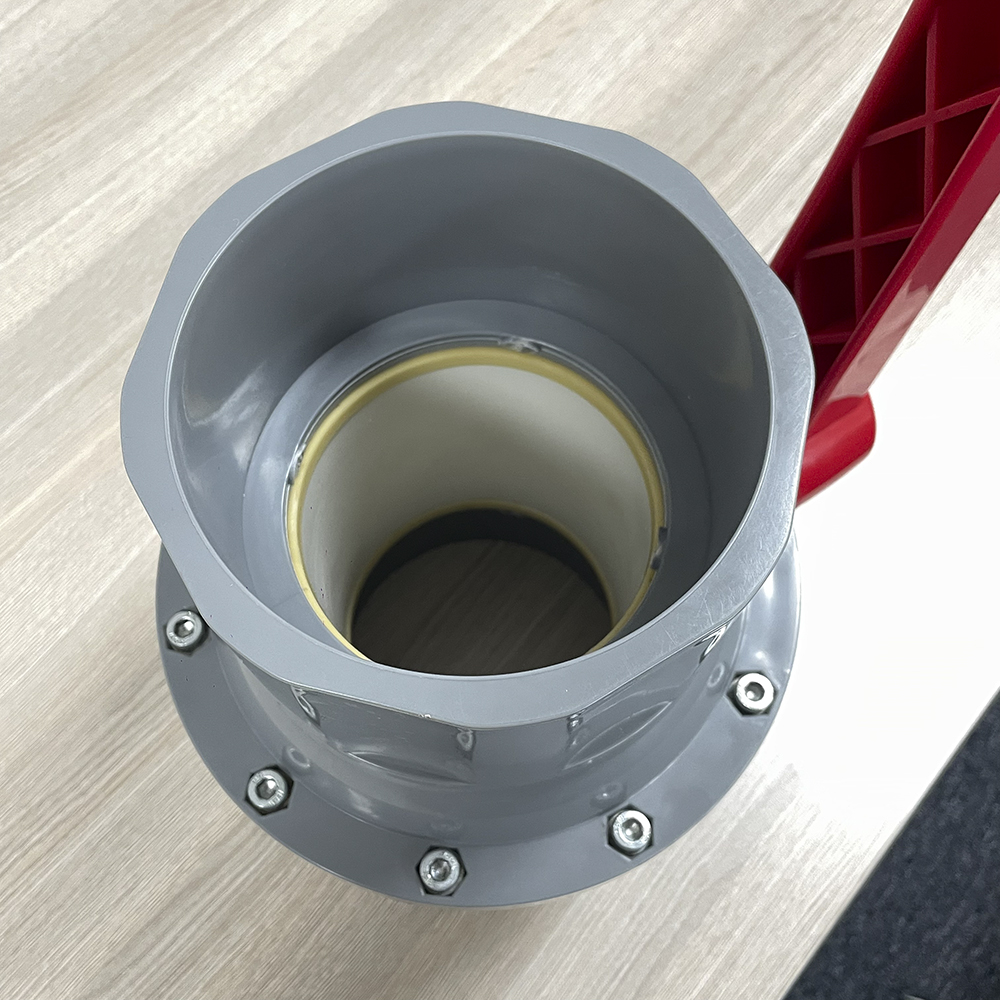

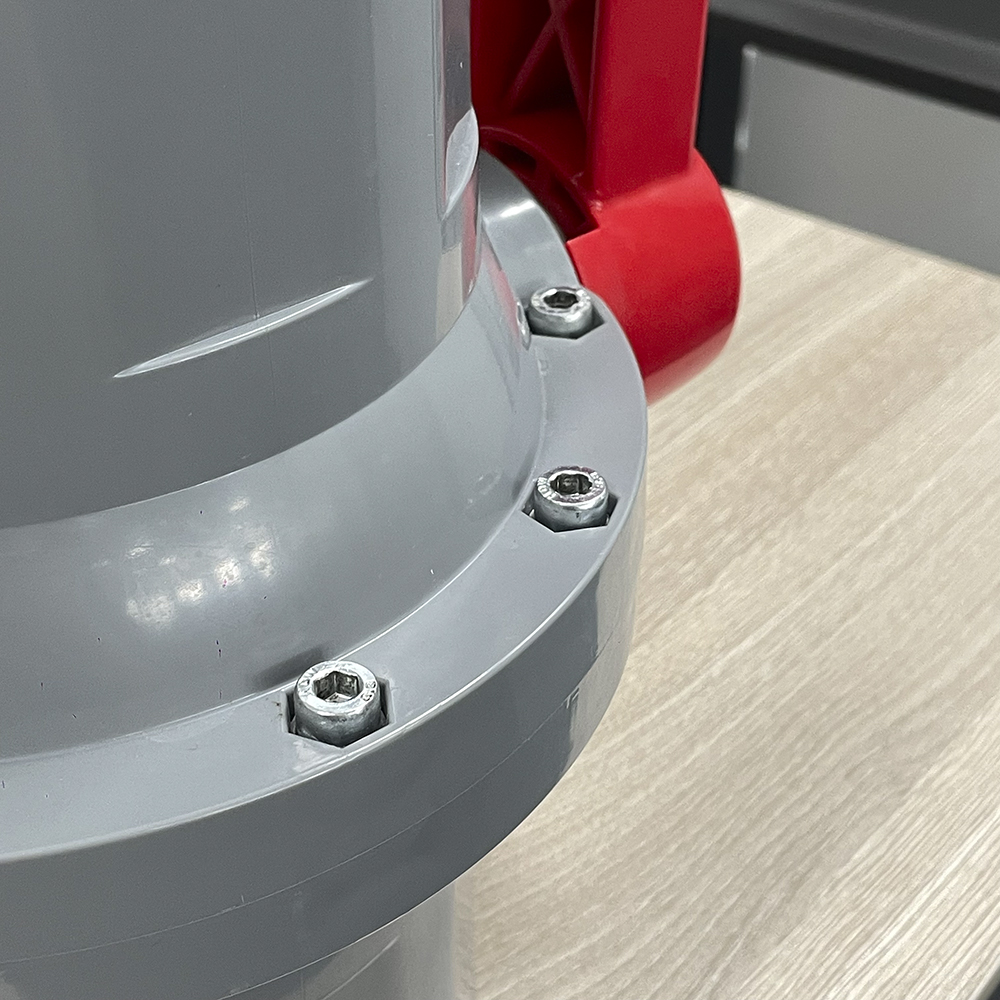

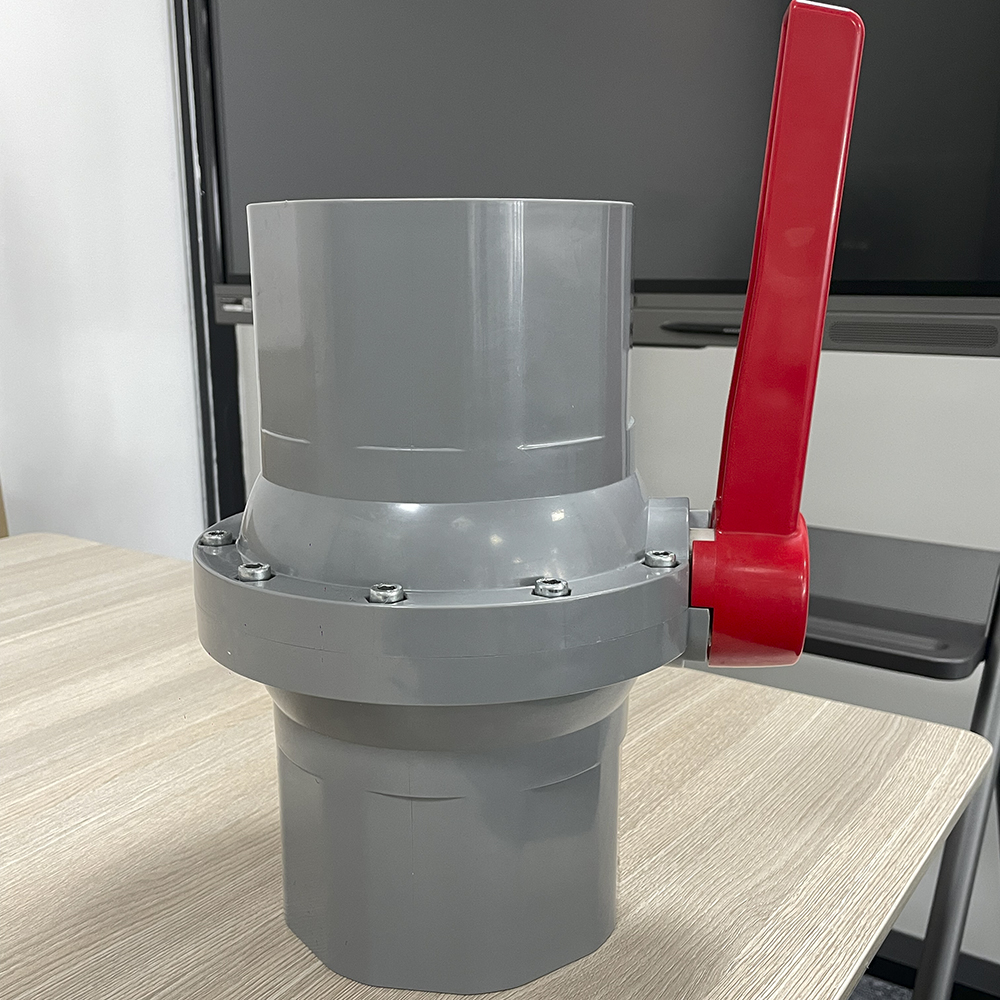

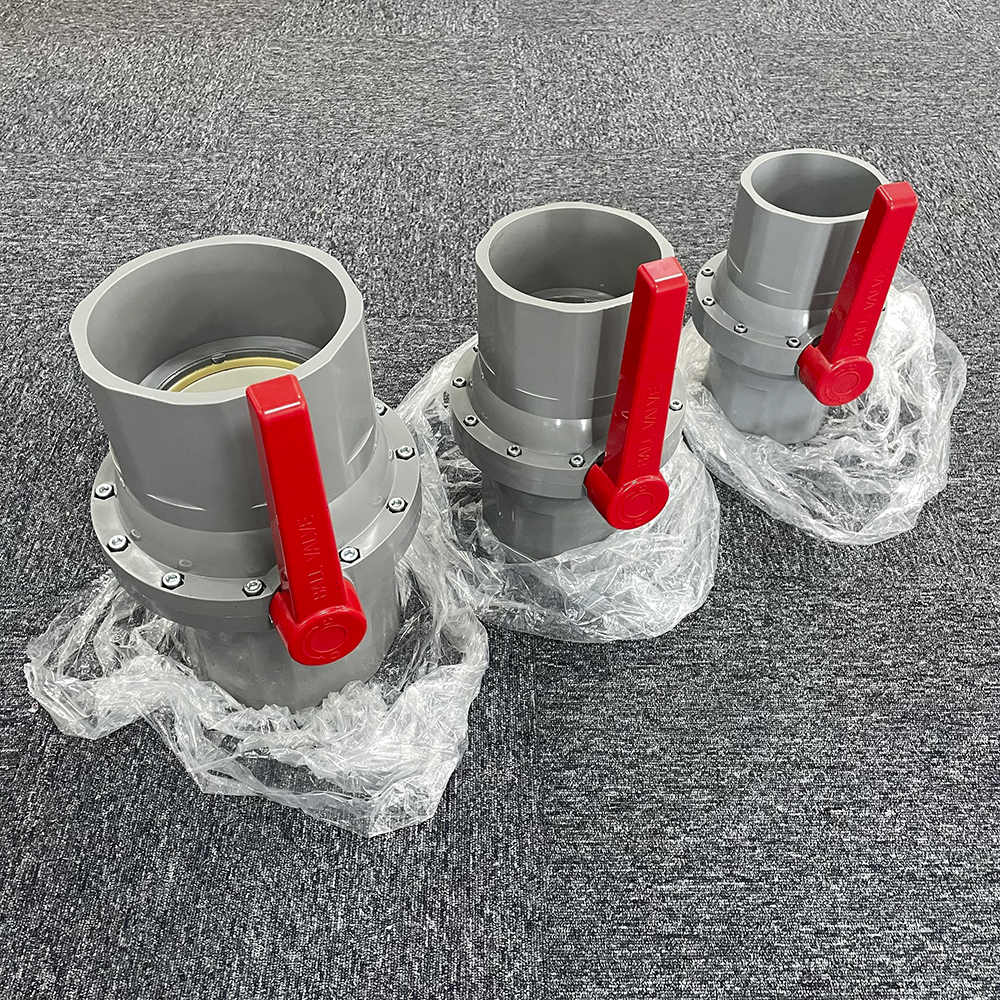

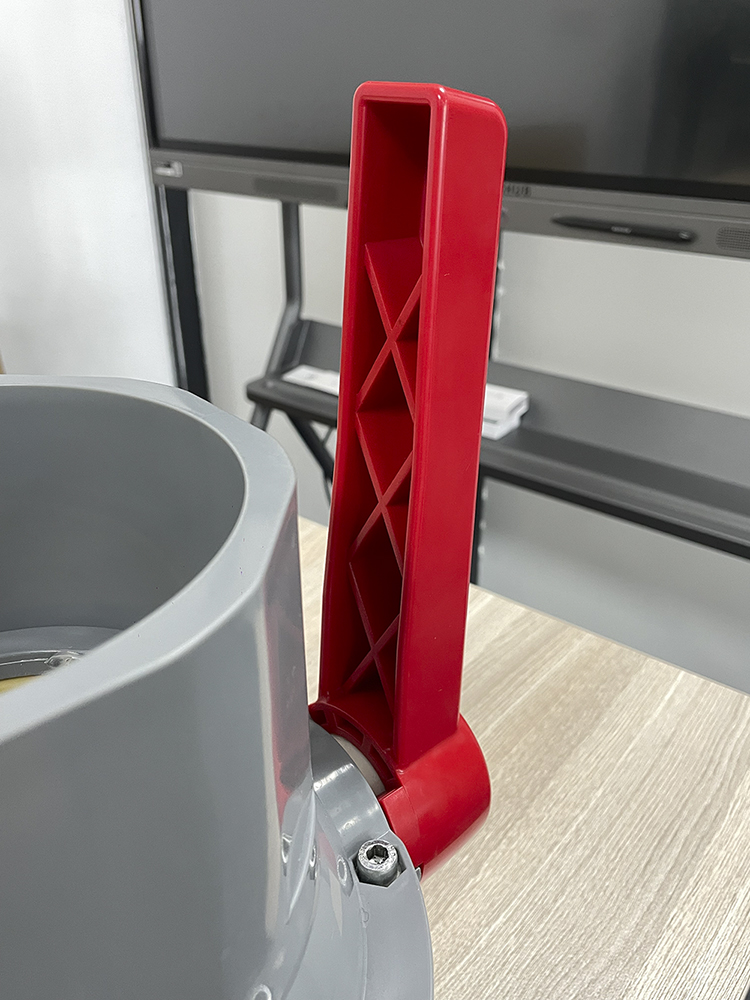

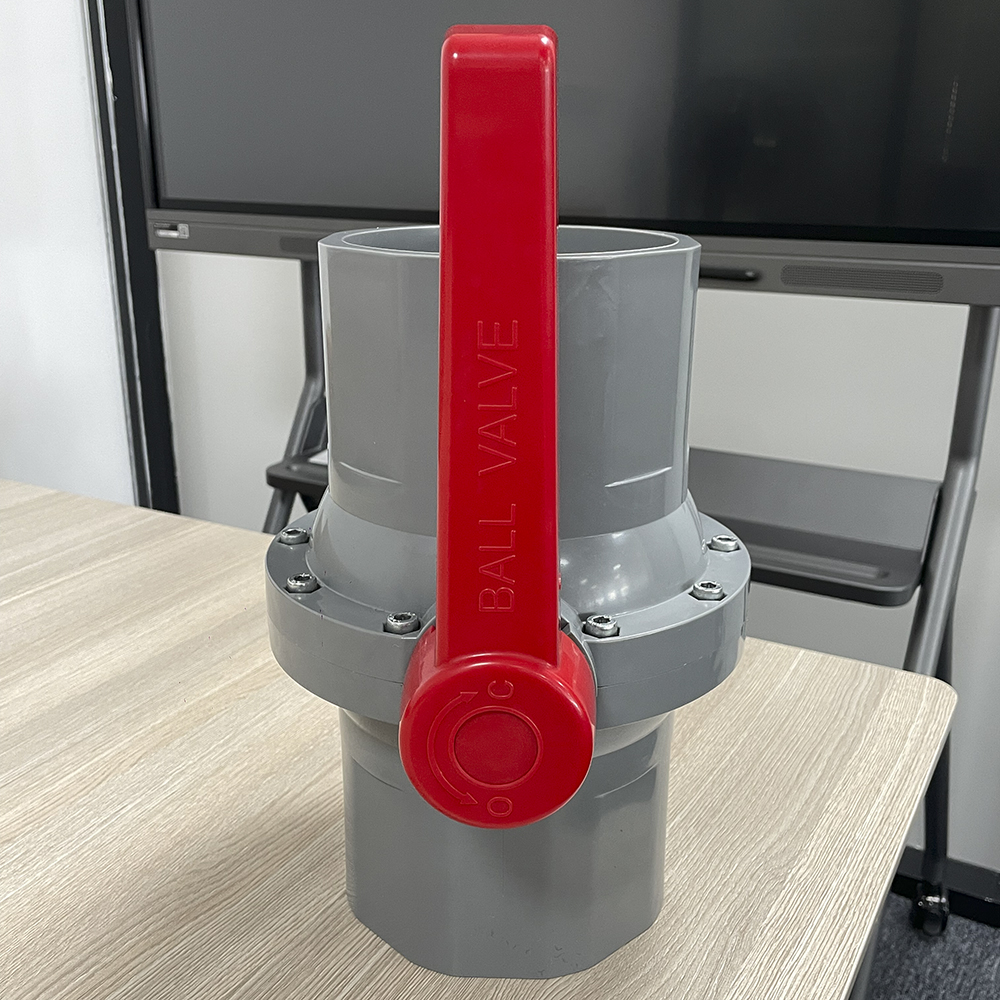

Didara Giga OEM 140MM 160MM 168MM 200MM Irin Alagbara UPVC Iwọn Nla Bọ́ọ̀lù Fáìlì fún Iṣẹ́ Àgbékalẹ̀ DN200 Àwòrán Àfihàn

Àpèjúwe Kúkúrú:

Ààbò bọ́ọ̀lù
1. Awọn awọ asọ & Apẹrẹ iwapọ
2.Iṣẹ́ Leakproff;
3.Light ati awọn opin iṣọkan jẹ ki fifi sori ẹrọ rọrun
4.Iṣowo-owo gẹgẹbi awọn idiyele gbigbe ti o din owo ati igbesi aye iṣẹ pipẹ
5.Well ati iṣakoso didara giga
6.Ayika ore, ti kii ṣe majele
7.Idaduro oju ojo ati abrasion ati resistance kemikali to dara julọ
8. A nlo ni ibigbogbo ninu ikole, irigeson, ile-iṣẹ ati adagun odo
9. Aṣẹ kekere gba
10. A ṣe àtìlẹ́yìn fún àwòrán àti àmì oníbàárà.

Ìwọ̀n:140MM 160MM 168MM 200MM

Ipari Apapọ:ASTM BS DIN ISO JIS

Iṣẹ́ titẹ:PN16

Fi imeeli ranṣẹ si wa

Àlàyé Ọjà

Awọn ibeere ti a maa n beere nigbagbogbo

Àwọn àmì ọjà

Àròsọ àti máàpù ti ara

iṣẹ́-ọjà kanṣoṣo

Ohun èlò ìpín

ìpele pàtó ti ohun elo

Rárá.	Apá kan	Ohun èlò	Iye
1	Ara	UPVC,CPVC	1
2	O-Ring STEM	EPDM,FPM(NBR)	1
3	STEM	UPVC,CPVC	1
4	Bọ́ọ̀lù	UPVC,CPVC	1
5	Èdìdì Ìjókòó	TPE,TPVC,TPO	2
6	Ìbòrí	PVC, ABS	1
7	Mú	PVC, ABS	1
8	SKÙ	SS304,IRIN	1

Tabili afiwe paramita iwọn awoṣe

ÌWỌ̀N												Ẹyọ kan
ÀWÒṢE	DN		15	20	25	32	40	50	65	80	100
	ÌWỌ̀N		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Inṣi
	thd./in	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./in	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
